Machine With Road Transform Mechanism


Machine With Road Transform Mechanism

Alchemist

ABM-36

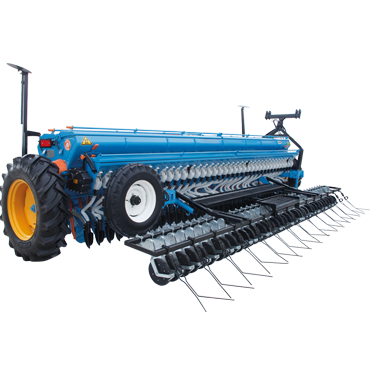

  • COMBINED GRAIN SEEDER is a machine hung and towed with a tractor which deposits wheat, barley, oats, sunflower, lentils, chickpeas, beans and similar seeds and fertilizer to the soil in the desired amount and depth uninterruptedly.
Features

ABM – 36 / 142 SOWING MACHINE WITH ROAD TRANSPORT MECHANISM, FINE SEED BOX, RECIPROCATING HARROW                           Distance Between Discs -- 142 mm --
Type Of Machine Working Width Track Width Total Height Total Length Seed Capacity Fertilizer Capacity Tyre Size Total Weight Tractor Power
Unit mm mm mm mm kg kg   kg hp
20 2840 3620 1450 3050 400 300 750/16 1120 60+
22 3130 3900 1450 3050 430 330 750/16 1232 60+
24 3400 4250 1450 3050 460 360 750/16 1344 70+
28 3980 4820 1450 3050 520 420 750/16 1420 80+

ABM – 36 / 125 SOWING MACHINE WITH ROAD TRANSPORT MECHANISM, FINE SEED BOX, RECIPROCATING HARROW                          Distance Between Discs -- 125 mm --
Type Of Machine Working Width Track Width Total Height Total Length Seed Capacity Fertilizer Capacity Tyre Size Total Weight Tractor Power
Unit mm mm mm mm kg kg   kg hp
20 2500 3300 1450 3050 370 270 750/16 1100 50+
22 2750 3550 1450 3050 400 300 750/16 1210 60+
24 3000 3800 1450 3050 430 330 750/16 1320 60+
28 3500 4300 1450 3050 490 390 750/16 1540 80+
32 4000 4800 1450 3050 550 450 750/16 1760 80+
36 4500 5700 1500 3050 550 470 12.4 - 11.24 1890 80+
40 5000 6200 1500 3150 610 525 12.4 - 11.24 2100 80+
44 5500 6700 1500 3150 670 580 12.4 - 11.24 2310 90+
48 6000 7200 1500 3150 730 630 12.4 - 11.24 2520 90+

ABM – 36 / 150 SOWING MACHINE WITH ROAD TRANSPORT MECHANISM, FINE SEED BOX, RECIPROCATING HARROW                          Distance Between Discs -- 150 mm --
Type Of Machine Working Width Track Width Total Height Total Length Seed Capacity Fertilizer Capacity Tyre Size Total Weight Tractor Power
Unit mm mm mm mm kg kg   kg hp
24 3600 4680 1500 3050 480 370 12.4 - 11.24 1480 70+
36 5400 6480 1500 3150 670 540 12.4 - 11.24 2160 80+
40 6000 7080 1500 3150 740 600 12.4 - 11.24 2400 80+
