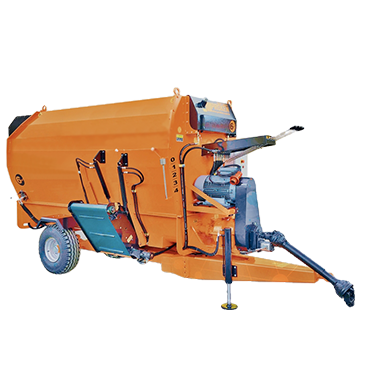

Horizontal Feed Mixer

Product Name Unit APYK 06
Width mm 1544
Length mm 3966
Height mm 2434
Body Volume 6
Empty Weight kg 1900
Back Cover Type    Hydrolic Bucket
Spiral System   Horizontal double helix
Motion System   Reducer
Motion Source   Traktor Tail National
Spindle Speed rpm 540
Weighing System   Digital (Optional)
Hydraulic Pressure Supply   Tractor
Mixture Homogeneity min % 90 / 15
Oil Pump Power Supply   Planetary Gearbox
Drive Power (min) hp 50-55
Number of Motion Input Shafts   Single
Wheel   10.080 / 12
Tractor Separator Foot   Hydrolic
Drain Cover   Single from the right
Body Ground Sheet Thickness mm 7
Spiral Sheet Steel Thickness mm 10
Number of Chopper Knife over Screw pcs 100
