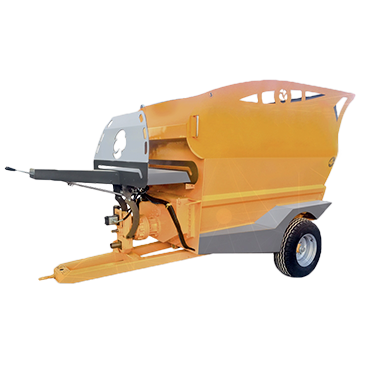

Horizontal Feed Mixer

Product Name Unit APYK-R 04
Width mm 2100
Length mm 4256
Height mm 2435
Body Volume 4
Empty Weight kg 1650
Back Cover Type    Hydrolic Bucket
Spiral System   Horizontal double helix
Motion System   Reducer
Motion Source   Traktor Tail National
Spindle Speed rpm 540
Weighing System   Digital (Optional)
Hydraulic Pressure Supply   Tractor
Mixture Homogeneity min % 90 / 15
Oil Pump Power Supply cm³/min 28 (Gear pump)
Drive Power (min) hp 40
Number of Motion Input Shafts   Double
Wheel   10.80  / 12
Tractor Separator Foot   Hydrolic Jack
Drain Cover   Single from the right
Body Ground Sheet Thickness mm 8
Spiral Sheet Steel Thickness mm 12
Number of Chopper Knife over Screw pcs 52
